P16 outdoor fixed installation LED display
● Pixel pitch: 16mm
● Module size: 256x256mm
● Screen brightness: 7500nits
● IP grade: IP65

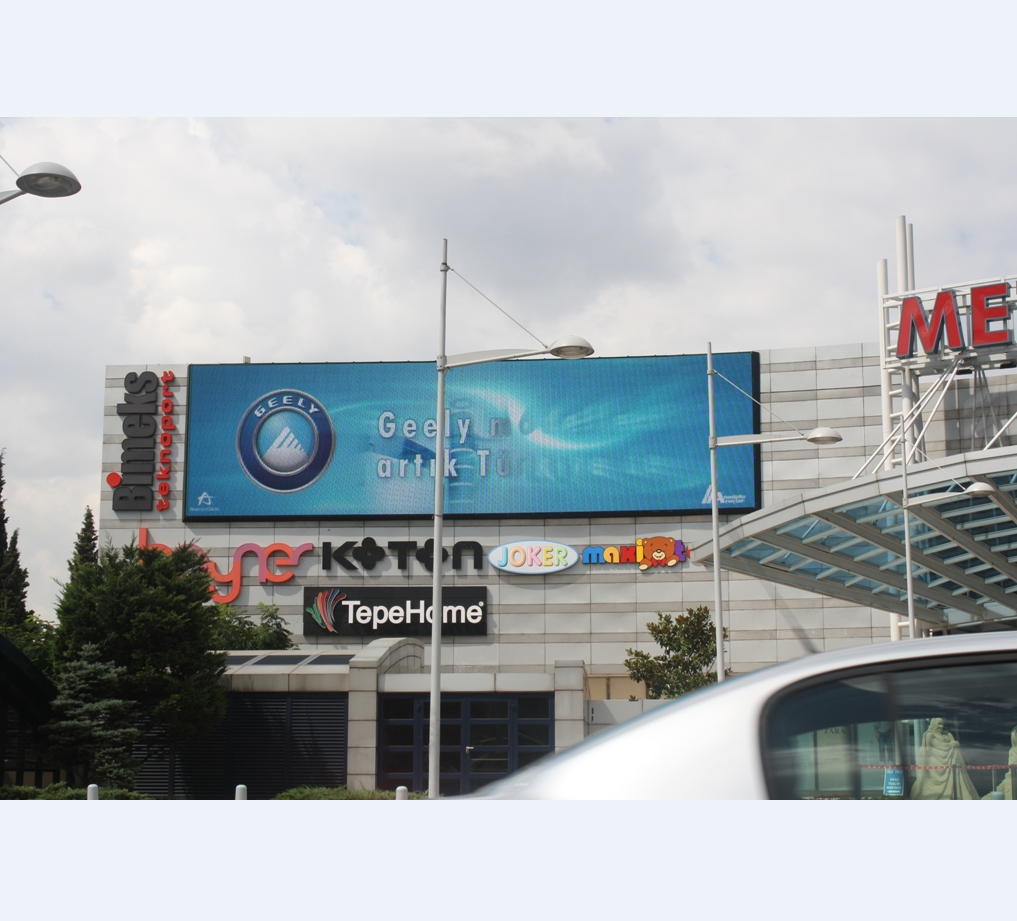

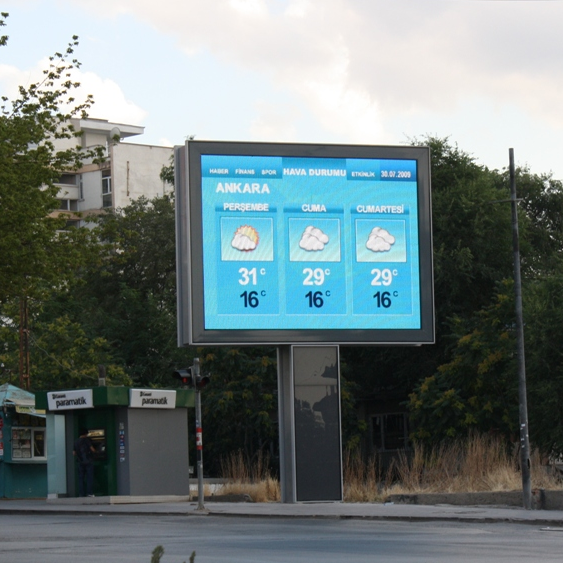

● Application: outdoor fixed installation
● Pixel pitch: 16mm
● Module size: 256x256mm
● Screen brightness: 7500nits
● IP grade: IP65
● Application: outdoor fixed installation
PRODUCT FEATURES:
● Durable fresh color and high brightness by adopting high quality leds.
● Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.
● Great uniformity , contract ratio and screen flatness.
● Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
● IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
NO. | ITEM | PARAMETER | UNIT |
Modules | Model | F16 |
|
Pixel Pitch | 16 | mm |
Physical Density | 3906 | dots/㎡ |
LED Configuration: | 1R1G1B | / |
LED Type: | DIP346 | / |
Module Size | 256x256 | mm |
Module Resolution | 16x16 | dots |
Module Power Consumption | 15 | w |
Screen | Drive Mode: | Static Constant Current Drive | / |
Horizontal Viewing Angle | 120 | Deg |
Vertical Viewing Angle | 60 | Deg |
Brightness | 7500 | cd//㎡ |
Grey Scale: | 16 | bits |
Refresh Rate | ≥3840 | Hz |
Cabinet Resolution | 64x48 | dots |
Max. Power Consumption | 750 | W/㎡ |
Ave. Power Consumption | 230 | W/㎡ |

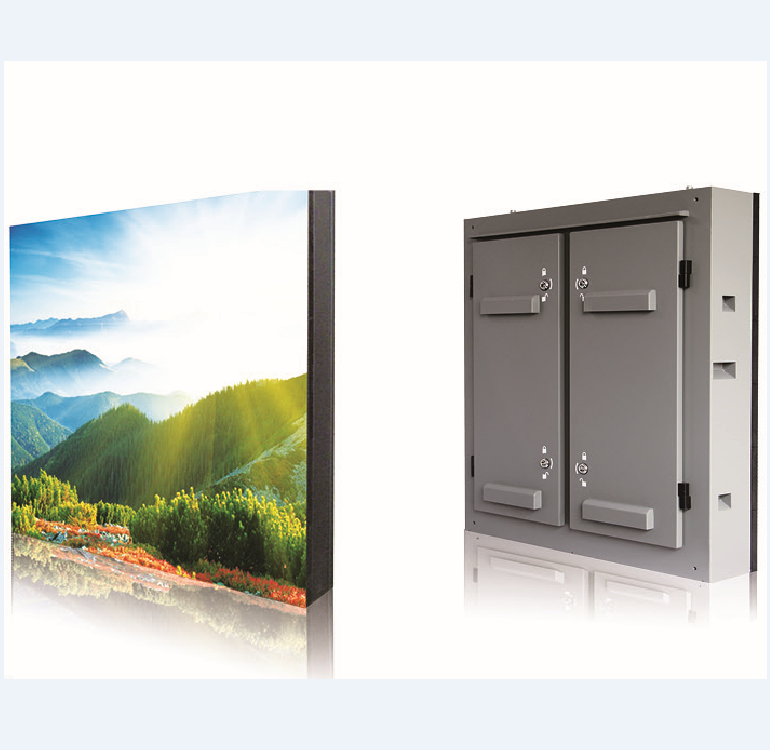

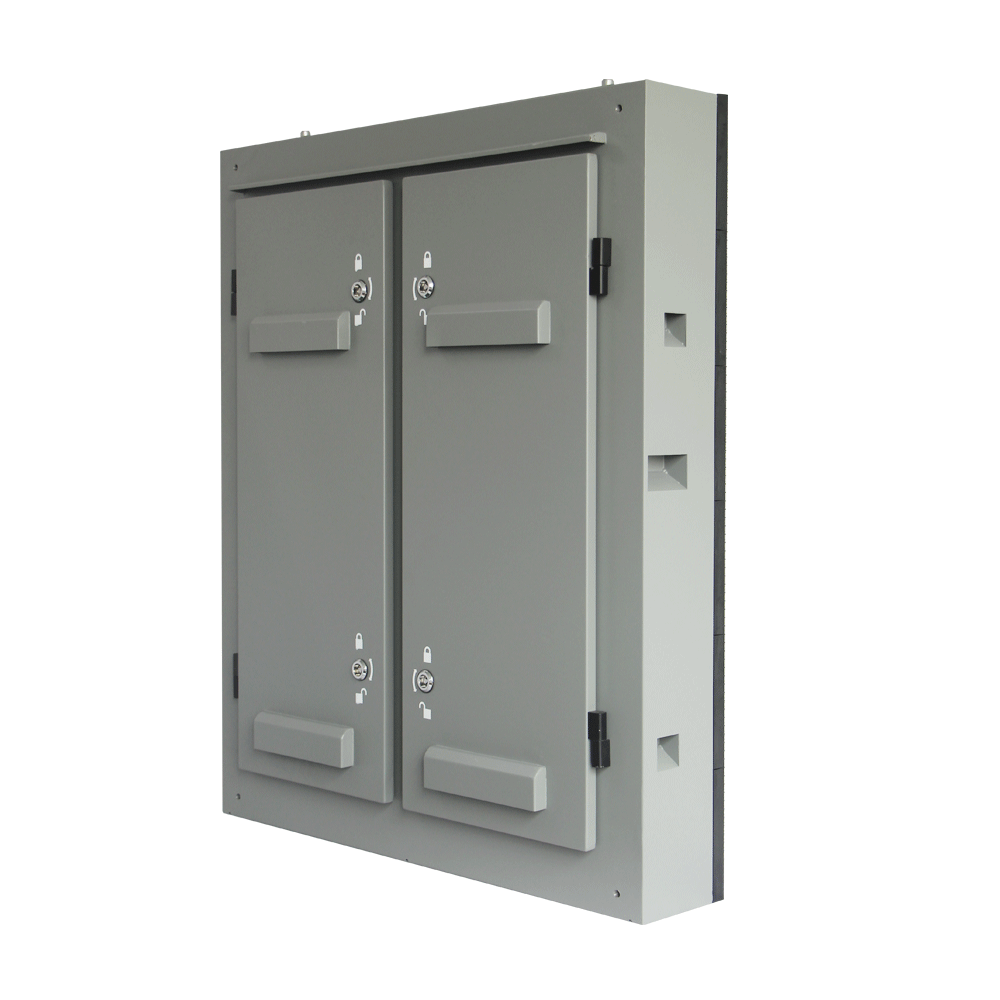

Cabinet Size | 1024x768 | mm |

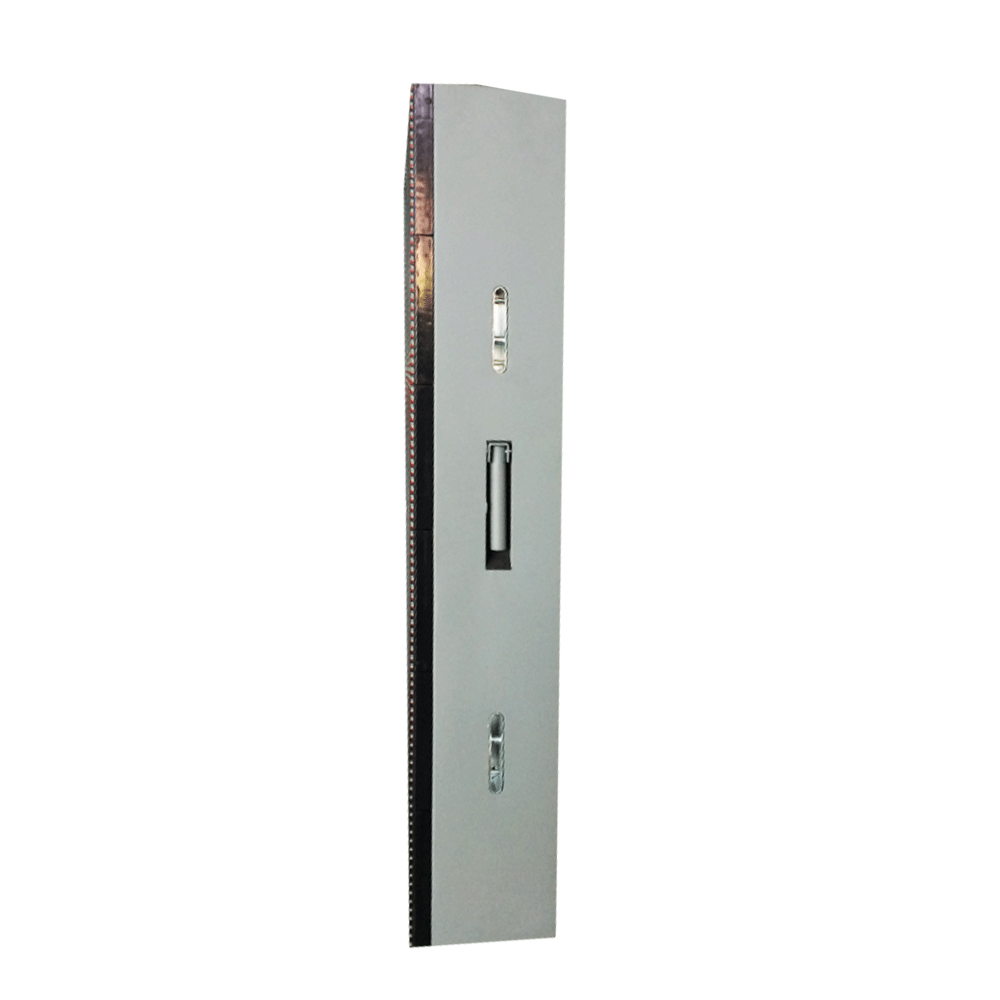

Cabinet Thickness | 150 | mm |
Cabinet Material: | Steel/Aluminum |
|
Color | >16.7 | M |
Input Voltage | AC 110V~220V+/-10% | V |
Refresh Frame Frequency | 60 | Hz |
Protection Level: | IP65 | / |
Working Environment: | Outdoor | / |
Working Temperature | -30- +60 | ℃ |
Operation humidity | 10%-95% | RH |
Certificates: | CCC、 CE、RoHS | / |
