P4mm indoor fixed installation led display
● Module size: 256x128mm
● Brightness: 1500nits
● Application: Indoor fixed installation.
● Service: Front / Rear.
● Application: Indoor fixed installation.
● Module size: 256x128mm
● Brightness: 1500nits
● Application: Indoor fixed installation.
● Service: Front / Rear.
● Application: Indoor fixed installation.
PRODUCT FEATURES:
●Quiet fan design, excellent heat dissipation.
● Sidelocks design for better consistency and seamless assembly.
● High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

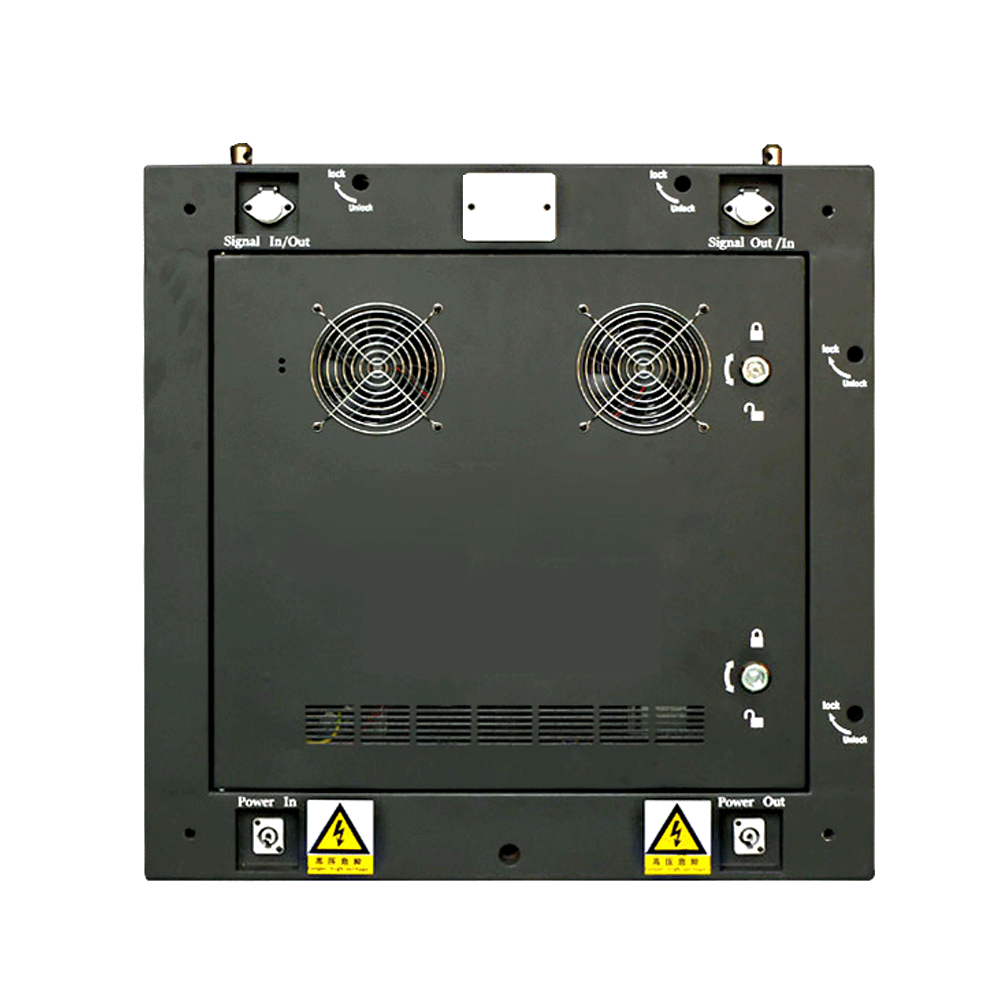

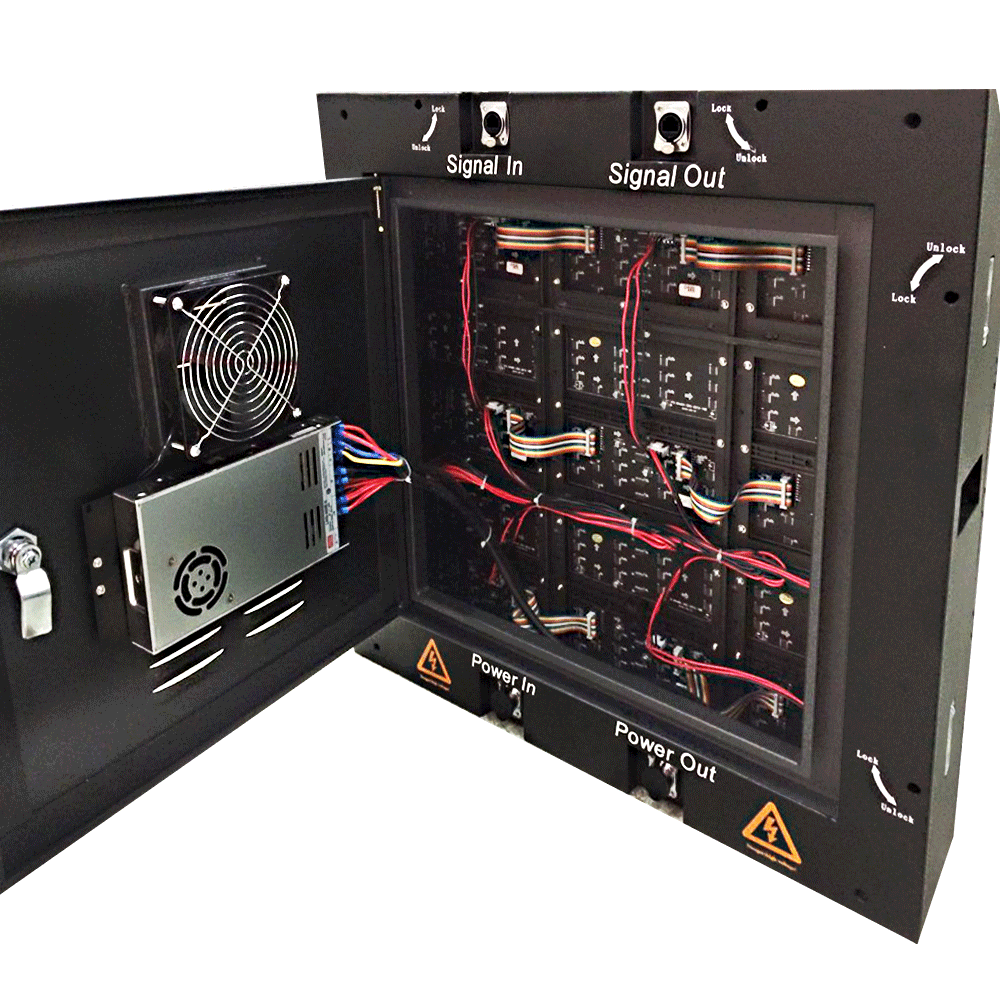

● High-performance metal plate cabinet, concise cable.
● The sealed-type back cover, effectively prevent wrong operations from the amateur.
NO. | ITEM | PARAMETER | UNIT |
Modules | Model | V04 |
|
Pixel Pitch | 4.0 | mm |
Physical Density | 62500 | dots/㎡ |
LED Configuration: | 1R1G1B | / |
LED Type: | SMD2121 | / |
Module Size | 256x128 | mm |
Module Resolution | 64*32 | dots |
Module Power Consumption | 8.2 | w |
Screen | Drive Mode: | 1/16 Constant Current Drive | / |
Horizontal Viewing Angle | 140 | Deg |
Vertical Viewing Angle | 140 | Deg |
Brightness | 1,500 | cd/㎡ |
Grey Scale: | 16 | bits |
Refresh Rate | ≥1920 | Hz |
Cabinet Resolution | 128*128 | dots |
Max. Power Consumption | 750 | W/㎡ |
Ave. Power Consumption | 250 | W/㎡ |
Cabinet Size | 512x512 | mm |

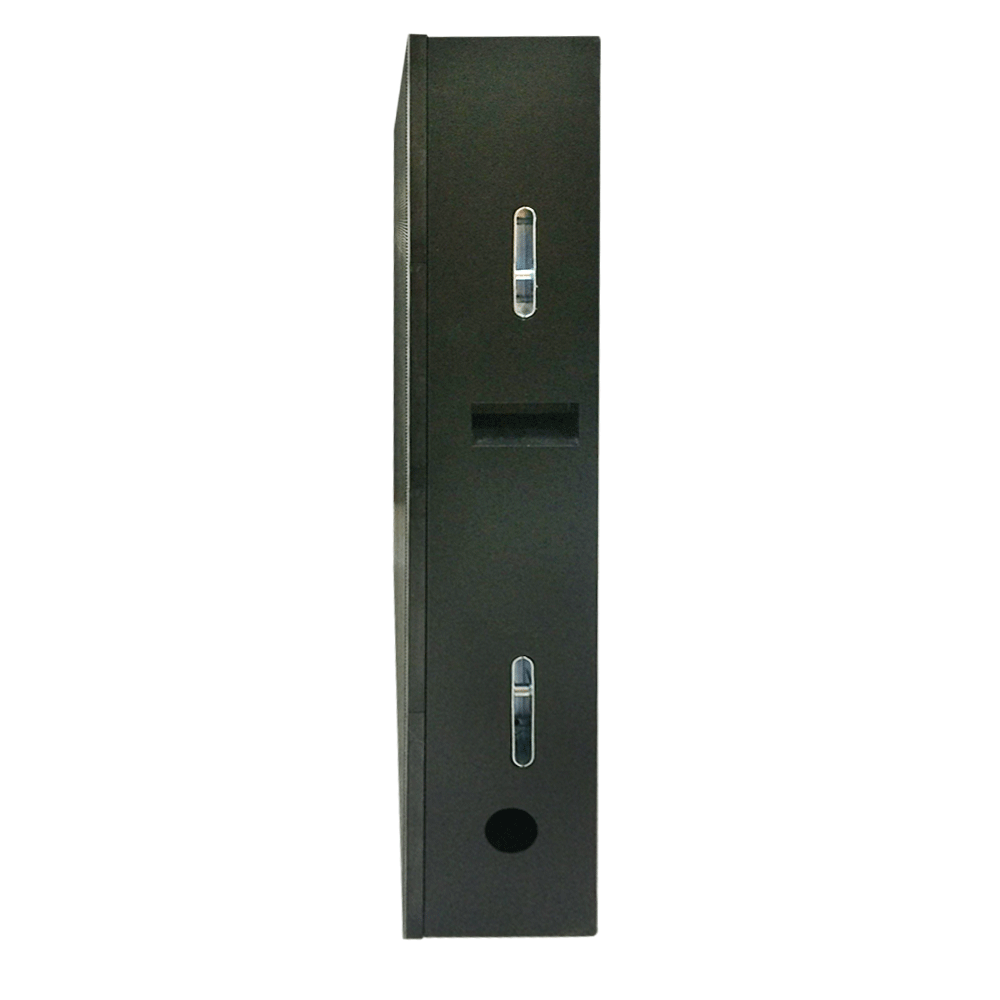

Cabinet Thickness | 135 | mm |
Cabinet Material: | Steel/Aluminum |
|
Color | >16.7 | M |
Input Voltage | AC 110V~220V+/-10% | V |
Refresh Frame Frequency | 60 | Hz |
Protection Level: | IP33 | / |
Working Environment: | Indoor | / |
Working Temperature | "-20°- +40° | ℃ |
Operation humidity | 10%-90% | RH |
Certificates: | CCC、 CE、RoHS | / |
